The lotion pump is a liquid dispenser pump that extracts liquid from the bottle by pressing, and it is the best dispenser pump for cosmetics, shampoo, and hand soap.
When you are looking for a lotion pump manufacturer, you need to consider the times of empty pressures, output quantity, rebound speed, and leakage status of the lotion pump.
The main components of a lotion pump are actuator, closure, outer gasket, housing, stem, piston, spring, ball valve, and dip tube.
At the same time, you can also check more lotion pump models from our LOMPAK website.
How Many types of Lotion Pump Do You Know?
If you want to classify the lotion pumps, you can subdivide them according to the following 7 points.
- Output:0.2cc, 0.5/0.7cc, 1.0/2.0cc, 3.5cc, 5.0cc, 10cc or more, etc.
- Neck size: Ф18, Ф20, Ф22, Ф24, Ф28, Ф33, Ф38, Ф40, Ф43, Ф44, Ф45, Ф46, etc. (corresponding to the “T” size of the bottle mouth).
- Thread specifications: 400, 405, 410, 415, 425 (corresponding to the number of thread turns and the height of the bottle mouth).
When you choose the lotion pump, you must choose your bottle size and confirm your size in 24/410, 28/410, or 28/400.
- Application of lotion pumps
Lotion pumps are used for different applications to fit lotion bottles. You will have shampoo lotion pump pumps, body lotion pumps, airless lotion pumps, oil pumps, sunscreen lotion pumps, mason jar lotion pumps, skincare lotion pumps, cosmetic lotion pumps, cream lotion pumps, foundation pumps, face wash pumps, hand soap pumps, etc.
The materials of lotion bottles can be glass, plastic, ceramics, and aluminum in 100ml, 200ml, and 500ml.
- Locking design： A lotion pump can be locked in three ways: by screwing it down called a lockdown, by turning it left or right called a lock-up, and by using a clip lock.

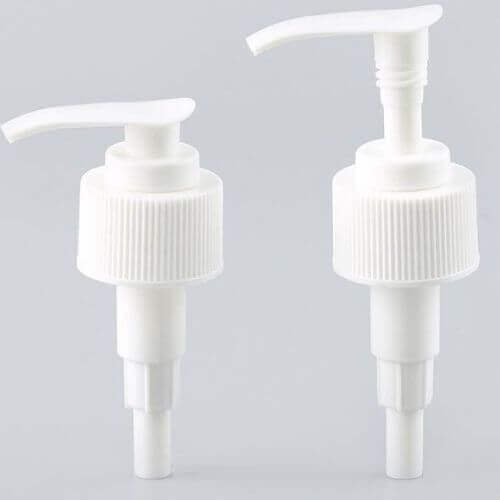

Lock-down lotion pumps are safe during transportation. You need to twist to a certain position to turn it off. These types of lotion pumps are generally fixed in one place, usually in hotels, gyms, and public places.

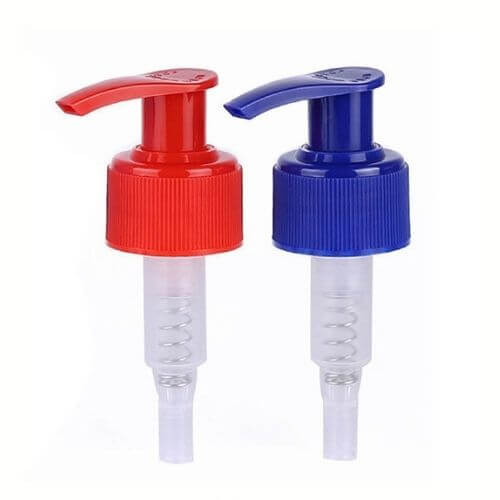

Lock-up lotion pumps are more fashionable now. You just need to twist the nozzle to the left and right, which is easy to turn on and off.

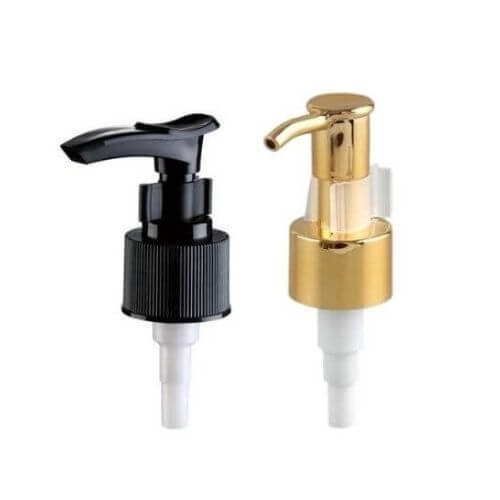

The child-resistant lotion pump with click lock is a brand-new style of dispenser pump. It comes with a lockdown feature and a safety clip to ensure that the product does not leak during transport.
- Spring Assembly

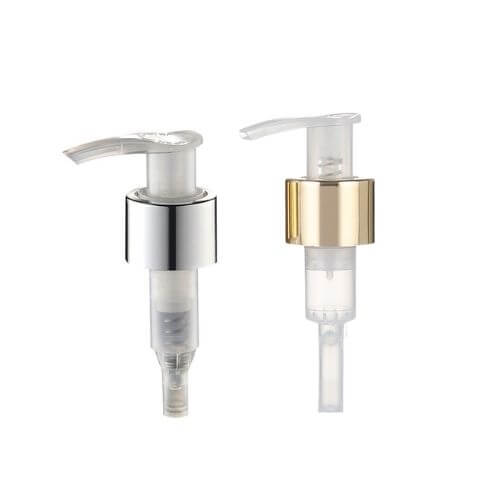

Depending on whether the pump is metal-free and the position of the spring assembly, it can be divided into three types: metal-free lotion pump, spring external pump, and spring inner pump.
- Free metal means there is no metal on the whole lotion pump. This is a very advanced design, which has not been widely promoted because of the high technical requirements.
The generic style is the innerspring lotion pump. You can see the metal spring in the housing part above the ball valve. When you press the actuator, the liquid in the bottle will pass through the metal spring, which may cause liquid contamination.
- For the external spring lotion pump, you can see the design of the external spring located in the actuator. This spring is outside of the tube, so when you press, the liquid coming up in the bottle is not in contact with the metal. This prevents metal contamination. Cosmetics need more environmental protection.
- Materials
Plastic is the primary material of the lotion pumps. We can make the closure with a surface finish and add bamboo and metal to the outer ring.
- Plastic pump: The actuator and closure are made of plastic, then a layer of plastic is applied, such as vacuum, water, UV, heat transfer, and water transfer to make gold, silver, black, pink, oil rubbed, copper, bronze, etc.
| Color | Sliver ( Chrome, UV sliver) |
| Black | |
| Rose Gold, Pink | |
| Woode Grain (Water transfer printing) | |
| UV Gold, Rose Gold | |
| TPE color | |
| Brushing | |
| Copper | |
| Bronze | |
| Champagne |

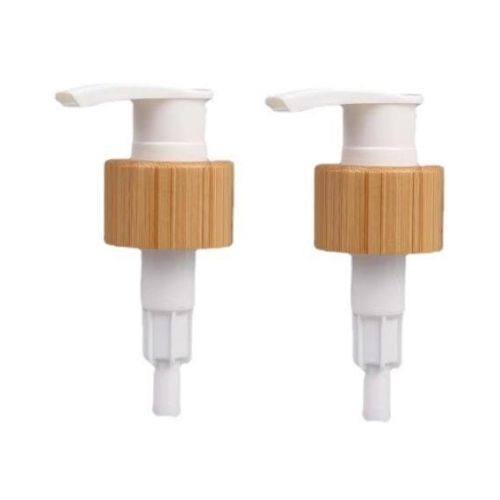

- Bamboo lotion pump: Plastic actuator with bamboo closure. Bamboo is an environmentally friendly material. If you think bamboo is yellow, you can spray it with yellow paint.
Bamboo Lotion Pump

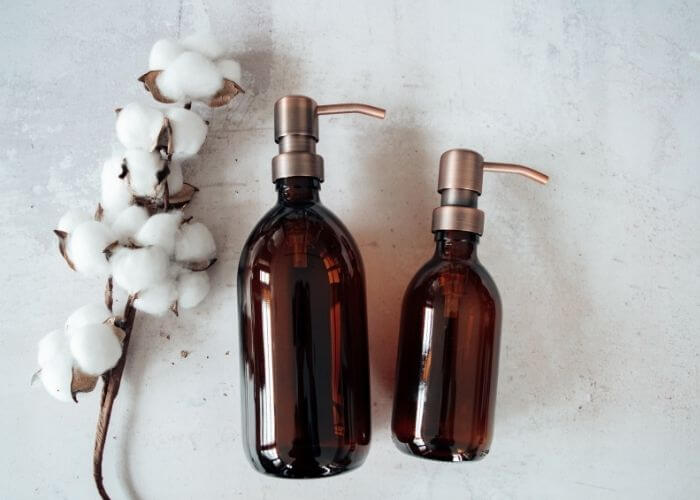

- Metal Lotion Pump:
The actuator and closure of a metal lotion pump can be made of stainless steel, zinc alloy, or brass. The copper, bronze, brushed, sandblasted, gold, and black treatments will be more fashionable. They are replacements for mason jar lids and luxury hand lotion pumps.
Do You Know What Factors Affect the Price of Lotion Pumps?
Metal lotion pump metal fittings are made out of a stamping machine, while all-plastic lotion pump fittings are made with an injection molding machine. Compared to plastic lotion pumps, metal lotion pump fittings are lighter and cheaper.
There is no doubt that the metal lotion pump is not made entirely of metal. Instead, its internal structure is mostly plastic, and only its spring, actuator, and collar are made of metal. This looks luxurious and is appropriate for bathroom products.
In addition to the difference in materials affecting the price, there are also different surface treatment costs.
As an example, UV surface treatment on lotion pump caps has a higher unit price than water plating or vacuum plating because the UV surface gloss is better. This is because the UV surface is not easily faded.
Brushed surface treatment compared to another sliver, gold, black is also high cost, because it has an additional brushing process
Also, the price of the matte effect process is higher than the glossy effect. This is because it needs to do a layer of sanding treatment on top of the glossy surface.
How Does the Lotion Pump Work?
Manually press the actuator, the pump spring moves downward, the upper valve opens, and the volume in the reservoir becomes smaller, forming a high pressure. During high pressure, the lower single valve of the reservoir closes to stop the liquid from flowing back into the bottle. At this time, the liquid flows out of the actuator’s mouth into the reservoir.
When you release the actuator, the volume in the reservoir cavity increases to form a negative pressure. The ball valve opens under the action of negative pressure, forcing liquid in the bottle to enter the reservoir cavity. At this moment, there is a portion of liquid in the reservoir cavity. When pressed again, the liquid stored within the valve body will rush upward, through the nozzle, to your hands.
For more details, you can check the following video.
Why Your Lotion pump doesn’t work?
- Why do you press the lotion pump and there is no liquid coming out?
- The length of the dip tube is too long or short to make the dip tube blocked, resulting in high empty pressure or even no liquid.
- The valves in the housing are damaged.
- The large ring of the piston is damaged or defective.
- The actuator of the lotion pump is not able to rebound
- The viscosity of the liquid in the bottle is too high and prevents the spring from springing back. For viscous liquids, it is recommended to use large lotion pumps with high viscosity and big output
- The lower valve of the lotion pump is blocked, the channel cross-section is small, the dip tube is too thin, and the cylinder bore or the piston outer ring is not smooth enough.
- Liquid leakage between the lotion pump and bottle mouth.
- Too much torque was applied to the rotation during filling to damage the lotion pump.
- The bottle height is not high enough to cause the upper end of the bottle mouth and the gasket of the lotion pump to not closely combine after screwing.
- The neck size of the lotion pump does not fit the bottles, for example, using a 28/400 pump to fit a 28/410 spray bottle.
If you are looking for Lotion Pump Factory, please contact LOMPAK expert Team now.
